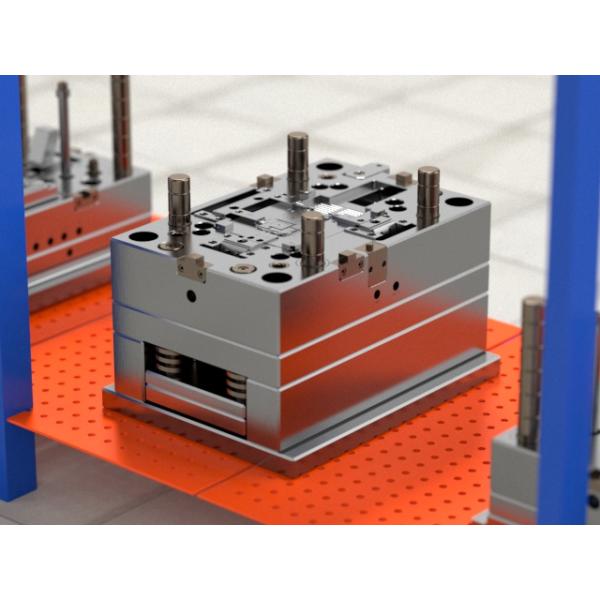

Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871

Name: Transparent Clamshell Phone Front Cover 11 Threeplates mold Cold Runner No21871
Brand: Chitwing
Price: 1 USD

Wholesale Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871 from china suppliers

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.000 X 450.000 X 401.000

IMM Tonnage : 110 T

Mold Weight : 390kg

Type : Three-plates mold structure

Slide : 6

Lifter : 10

Surface finish : VDI24#

Contact Now

Transparent Clamshell Phone Front Cover (1*1)

No.21871

[Mold size]		[Standard]
L × W	Height
* 350x450	* 401
[Tool life]		* LKM
* 500K shots
[Gate]
* Design with side gate		[Slide]
Pin point gate to side gate		* 6
[Type]		[Lifter]
* Three-plates mold structure		* 10
[Injection/runner type]
* Cold runner

Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871

[Surface finish]

◇ Make the mold obtain a lower roughness, and the molded

parts have smoother surface

- A surface EDM with VDI24#

Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871

[Steel of

cavity & core]

◇ Hardening greatly improves the physical hardness and wear resistance

of the mold, and greatly improves the ability to resist corrosion

Harden

(1*2/S136)

Transparent Clamshell Phone Front Cover (1*1) / Three-plates mold / Cold Runner No.21871

[Mold net weight]
* 390kg
[Part Net Weight]
* 5g / 55.55X11.24X108.75mm
[IMM Tonnage]
* 110T

Display diagram
